Sediment Filtration
Pentek P Series Spun-Bonded Polypropylene Cartridges
A family of **100% polypropylene, spun-bonded cartridges** with true gradient density. P Series filters provide high dirt-holding capacity without imparting taste, odour or colour—ideal as sediment pre-filters in residential and light-commercial systems.
Why It Matters
Key Benefits
Clean, Neutral Filtration
Manufactured from pure 100% polypropylene fibres designed for purity, so cartridges will not impart taste, odour or colour to the liquid being filtered.
High Dirt-Holding Capacity
Spun fibres form a true gradient density from outer to inner surfaces, capturing larger particles on the outside and finer particles inside for longer life.
Chemical Resistance
Polypropylene construction offers superior chemical compatibility and is not prone to bacterial attack when used within the rated temperature range.
Pre-filtration in residential POE/POU systems, light-commercial water systems, RO pre-treatment, and general-purpose sediment reduction where chemical resistance and media purity are important.
| Residential POE/POU | RO Pre-filters | Light Commercial |
|---|
Sand, rust and silt can clog fixtures and foul downstream filters. Pentek P Series cartridges capture sediment efficiently while keeping water chemistry stable—so systems run longer and taste issues stay in check.
| Parameter | Details |
|---|---|
| Filtration Capacity | Not specified (depends on micron rating, length and application) |
| Micron Rating | Nominal 1 µm, 5 µm, 25 µm (models P1, P5, P25 and length variants) |
| Flow Rate | Typical initial pressure drop for 10" cartridges at 5 gpm: P1 – 0.6 psi; P5 – 0.2 psi; P25 – 0.2 psi. 20", 30" and 40" cartridges exhibit proportionally lower ∆P at the same flow. |
| Dimensions (L × W × D) | Outside diameter 2.38" (60.5 mm). Lengths: 4.88", 9.88" (10" nominal), 20", 30", 40". |
| Operating Pressure | Not specified (use within housing rating and pressure drop guidelines). |
| Operating Temperature | 40–145 °F (4.4–62.8 °C). |
| Connections | Drop-in cartridges for standard 2.5" diameter housings (10", 20", 30", 40"). No direct threaded conn |
| Certifications | Models P1, P5, P1-20 and P5-20 tested and certified by NSF International to NSF/ANSI Standard 42 for material requirements only. |
| Application | Sediment reduction in residential and light-commercial water filtration systems, including RO pre-treatment and general-purpose particulate removal. |
Related Products

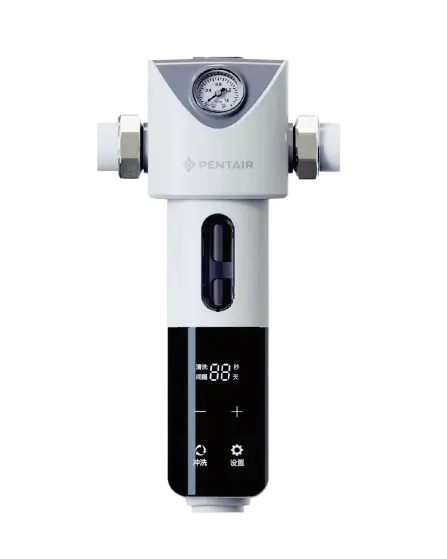

Pentair C500 Auto Sand Filter
- Capacity: Not specified
- Micron Rating: ≈ 40 µm (effective nominal)
- Flow Rate: 6.5 m³/h (service flow)
- Connections: Not specified
- Certifications: Not specified
Pentair Big White™ with Bypass Filter Housings
- Capacity: Not applicable (capacity depends on installed cartridge)
- Micron Rating: Not applicable (capacity depends on installed cartridge)
- Flow Rate: Not specified (system flow depends on cartridge and plumbing)
- Connections: 1″ NPT inlet and outlet; 1/2‑turn bypass valve integrated in cap; pressure relief button on cap
- Certifications: Not specified
Pentek EP Series Carbon Block Cartridges
- Capacity: Model-dependent chlorine taste & odour reduction capacity (approx.): EP-10 > 6,000 gal @ 1 gpm; EP-20 > 12,000 gal @ 2 gpm; EP-BB > 22,000 gal @ 2 gpm; EP-20BB > 40,000 gal @ 4 gpm (90%+ reduction at
- Micron Rating: Nominal 5 µm (per manufacturer internal testing).
- Flow Rate: Model-dependent. Typical service flows for chlorine reduction: EP-10 – 1 gpm; EP-20 – 2 gpm; EP-BB – 2 gpm; EP-20BB – 4 gpm (max 5 gpm for EP-20BB).
- Connections: Drop-in cartridges for standard 2.5" and 4.5" housings (10", 20" etc.). No direct threaded connection.
- Certifications: EP-10, EP-20, EP-BB and EP-20BB tested and certified by NSF International to NSF/ANSI Standard 42 for material requirements only.
Need help choosing the right P Series cartridge?
Talk to Aquainwent about sizing, pricing, and installation for your site.
